PowerMax ATVs

Poplar Ridge Lodge

...remote fishing at its best!

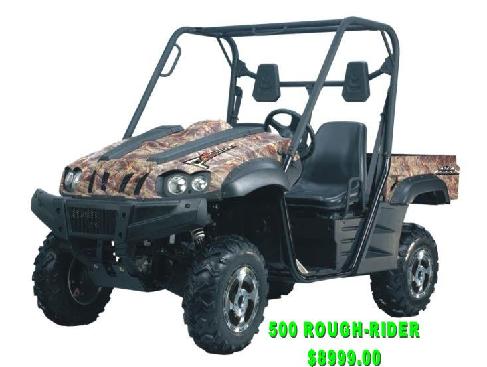

PM 500 ROUGHRIDER

COMPACT STYLE WITH FIRST CLASS PERFORMANCE

For serious off-road people interested in driving the hardest possible bargain, you've found your match. Along with its fully automatic 500cc CVT drive motor and 4 wheel independent suspension, this UTV delivers the best in performance and comfort. The Roughrider  package includes installed CD player, windshield, sun top, aluminum alloy wheels and a winch. From Performance to options this UTV packs in the most fun in such an affordable package.


Technical Specifications
Engine
Type:

471CC Water cooled, 5-valve, 4-stroke, 1-cylinder

Bore X Stroke:

3.4" x 3.3

Compression Ratio

9:4:1 Ratio

Max. Power 22.8HP/5000-5500rpm
Max. Torque 35.0N.m/5000rpm
Carburetion: PD36J
Ignition: CDI
Starting: Electric
Transmission: Fully-Auto L-H-N-R-P
Drive Train: Axle

Chassis
Suspension: F: Independent double swing arm
R: Independent double swing arm
Brakes: F: Dual ventilated hydraulic disc
R: Ventilated hydraulic disc
Tires: F: AT25 x 8-12 radial
R: AT25 x 10-12 radial
L x W x  H:

118.5" x 57.5" x 72.5"

Seat Height: 31"
Wheelbase: 74.5"
Ground Clearance: 9.7"
Fuel Capacity: 29L
Dry Weight:

1148 lbs

Colors: Black. Blue, Jungle Camo, Maple Leaf, UTV Red
Lighting: 12V35W/35WX2 (front);12.5W/21Wx1 (rear)

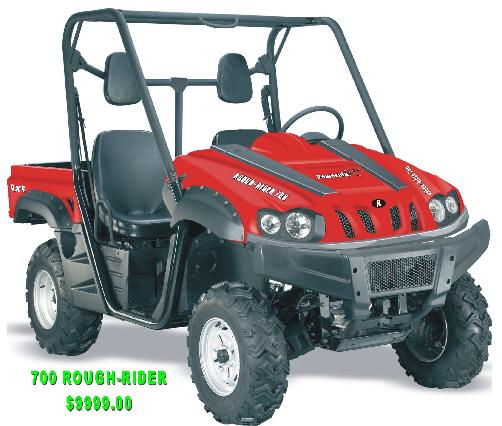

PM 700 ROUGHRIDER

MORE POWER PLEASE

The UTV world will never be the same again. The Powermax 700 Roughrider packs all the features his brother the 500 Roughrider UTV does but with a harder punch. Its efficient CVT transmission combined with its independently developed 700cc 33.5HP motor, selectable 4 wheel drive, 4 wheel independent suspension for your comfort, you can assure top notch performance. The Roughrider 700 UTV is the industry standard with durability and performance that can't be matched. Larger then an ATV but smaller then a compact pick-up truck this UTV is at the top of its class.




Technical Specifications
Engine
Type:

686CC Water cooled, 5-valve, 4-stroke, 1-cylinder

Bore X Stroke:

4.02" x 3.31

Compression Ratio

9:2:1 Ratio

Max. Power 33.5HP/5000-5500rpm
Max. Torque 49.0N.m/5000rpm
Carburetion: PD42J
Ignition: CDI
Starting: Electric
Transmission: Fully-Auto L-H-N-R-P
Drive Train: Axle

Chassis
Suspension: F: Independent double swing arm
R: Independent double swing arm
Brakes: F: Dual ventilated hydraulic disc
R: Ventilated hydraulic disc
Tires: F: AT25 x 8-12 radial
R: AT25 x 10-12 radial
L x W x  H:

118.5" x 57.5" x 72.5"

Seat Height: 31"
Wheelbase: 74.5"
Ground Clearance: 9.7"
Fuel Capacity: 29L
Dry Weight:

1155 lbs

Colors: Black. Blue, Jungle Camo, Maple Leaf, Red
Lighting: 12V35W/35WX2 (front);12.5W/21Wx1 (rear)

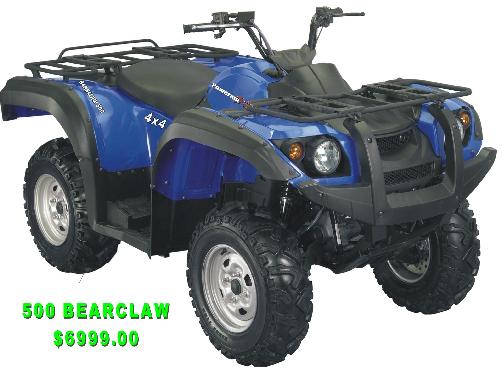

PM 500 BEARCLAW

FOUR-WHEEL MUD LOVER

The newly developed 500cc liquid-cooled, fully automatic, 4 stroke engine, long travel four wheel independent suspension and a phenomenal power-to-weight ratio, adds up to one serious and tough ATV. The Bearclaw come standard with aluminum alloy wheels and a winch.


Technical Specifications
Engine
Type: 471CC Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore X Stroke: 3.4" x 3.3
Compression Ratio: 9:4:1 Ratio
Max. Power: 22.8HP/5000-5500rpm
Max. Torque: 35.0N.m/5000rpm
Carburetion:

PD33J-A

Ignition:

CDI

Starting:

Electric/pull start

Transmission:

Fully-Auto L-H-N-R-P

Drive Train:

Axle


Chassis
Suspension: F: Independent double swing arm
R: Independent double swing arm
Brakes: F: Dual ventilated hydraulic disc
R: Ventilated hydraulic disc
Tires: F: AT25 x 8-12 radial
R: AT25 x 10-12 radial
L x W x  H: 86.6" x 51.2" x 50"
Seat Height: 34.3"
Wheelbase: 53.7"
Ground Clearance: 10.3"
Fuel Capacity: 17L
Dry Weight: 683 lbs
Colors: Red, Black, Blue
Lighting: F: 12V35W/35WX2, 12V5W
R: 12v5W/21Wx1
Turning: 12V10W x 4 (F&R)

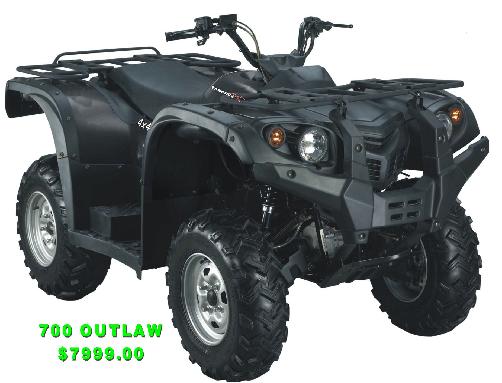

PM 700 OUTLAW

BRUTE TOUGH

The ultimate 4X4 performance, reliability and comfort. Built with adventure enthusiasts and sportsmen in mind the OUTLAW 700 4X4 is wrapped in aggressive bodywork, 4 wheel independent suspension and driven by a powerful independently developed 700cc CVT fully automatic motor. This quad comes standard with aluminum alloy wheels and a powerful winch.


Technical Specifications
Engine
Type:

686CC Water cooled, 5-valve, 4-stroke, 1-cylinder

Bore X Stroke:

4.02" x 3.31

Compression Ratio

9:2:1 Ratio

Max. Power 33.5HP/5000-5500rpm
Max. Torque 49.0N.m/5000rpm
Carburetion: PD42J
Ignition: CDI
Starting: Electric/pull start
Transmission: Fully-Auto L-H-N-R-P
Drive Train: Axle

Chassis
Suspension: F: Independent double swing arm
R: Independent double swing arm
Brakes: F: Dual ventilated hydraulic disc
R: Ventilated hydraulic disc
Tires: F: AT25 x 8-12 radial
R: AT25 x 10-12 radial
L x W x  H:

88.6" x 47.6" x 48.2"

Seat Height: 34.3"
Wheelbase: 53.7"
Ground Clearance: 10.3"
Fuel Capacity: 17L
Dry Weight:

703 lbs

Colors: Camo Brown, Red, Blk, Blu
Lighting: 12V35W/35WX2 (front);12.5W/21Wx1 (rear)

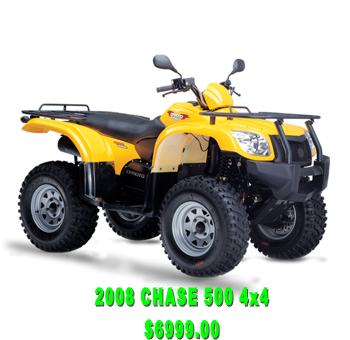

PM 500 CHASE

FIRST CLASS

The CHASE500 is equipped with a brand-new CF188 engine independently developed by CFMOTO, featuring large cylinder bore, 4 valves with the advantages of durability, stronger power, lower noise, lower fuel consumption and environmental protection. The engine can fully meet the cooling requirement of long-time operation at low speed with high torque. The Chase 500 can scale a 50~60 degree steep slope easily with high gear and can plow through an impressive depth of water if only the muffler is not submersed. Turning on cobble ground gives another demonstration of the engine torque. Powered by a 500CC engine, the ATV can easily drive along a ladder-type path of 200m long and 40 degrees slope with high gear, even with a passenger! This ATV comes standard with aluminum alloy wheels and a 2500LBS winch.

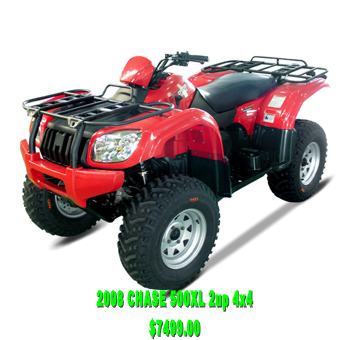

PM 500 CHASE XL

2 PASSENGERS NO PROBLEM

The PM CHASE 500XL is all our standard Chase 500 is and more. Independently designed to suite 2 passengers, standard 8" longer seat, passenger back rest and comfortable foot rests for each rider. This ATV is sure to impress your passengers.



Technical Specifications
Engine
Type:  Liquid-cooled 4-stroke,SOHC
Cylinder arragement:  Forward-inclined single cylinder
Carburetion:  MIKUNI BSR36-89
Displacement:  493 cm3
Bore x stroke:  87.5 × 82mm(3.44×3.23in)
Compression ratio:  10.2:1
Rated Power: 24Kw/7000 rpm
 Max. torque  36N.M/5500 rpm
Oil Capaxity:  2.2L
 Max. speed  ≥30km/h
 Power source:   12V, 6.5Ah
 Starting system:  Electric and recoil starter
 Lubrication system:  Wet sump
 Qty in 40GP:  20 units

Chassis
Overall length: 2320mm (91.3in)
Overall width: 1170mm(46.1in)
Overall height: 1230mm(48.4in)
Wheelbase: 1490mm (58.7in)
Minimum ground clearance: 290mm (11.1in)
Minimum turning diameter: 4400mm (173.3in)
Suspension:: F/R:Double wishbone
Transmission: CVT, P/R/N/H/L
Tire Size:F/R: F: AT25×8-12 38J R:AT25×10-12 45J
Brake Type: F:Dual disc brake R: Single disc brake
Front-rack Capacity: 35kg(77.2lb)
Fuel Capacity: 19L
Hitch Towing Capacity: 350kgf(772 lbf)
Rear-rack Capacity: 70kg(154.3 lb)
Dry weight: 337kg(743 lb)


PM 500 BANDIT

TAKE THE POWER TO THE MAX

When you combine features like a fully automatic CVT drive 500cc engine, 4 wheel drive on demand with light weight sport style ATV, your result is a highly enjoyable machine to ride. The Bandit comes standard with aluminum alloy wheels and a winch, this one's a value packed ATV ready for sporty exploring and playing.


Technical Specifications
Engine
Type: 471CC Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore X Stroke: 3.4" x 3.3
Compression Ratio: 9:4:1 Ratio
Max. Power 22.8HP/5000-5500rpm
Max. Torque 35.0N.m/5000rpm
Carburetion: PD33J-A
Ignition:  CDI
Starting: Electric/pull start
Transmission: Fully-Auto L-H-N-R-P
Drive Train:  Axle

Chassis
Suspension: F:Independent double swing arm
R:Independent double swing arm
Brakes: F: Dual ventilated hydraulic disc, R: Ventilated hydraulic disc
Tires: F:AT25 x 8-12 radial
R:AT25 x 10-12 radial
L X W X H: 78.3" x 41.7" x 45.3"
Seat Height: 32.3"
Wheelbase: 48.6"
Ground Clearance: 8.3"
Fuel Capacity: 13.6L
Dry Weight: 613 lbs
Colors: Camo Brown, Red, Blk, Blu
Lighting: F:12V35W/35WX2, R:12.5W/21Wx1

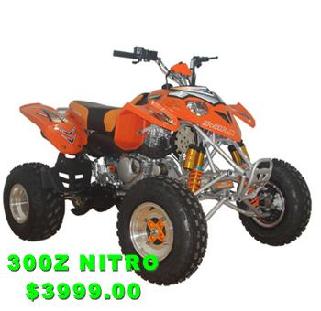

PM 300Z NITRO Sport Quad

MORE THAN FAST ENOUGH

When you're ready to take your sport quading to the next level, jump aboard our highly maneuverable middle weight 300cc Nitro sport quad. This Nitro comes standard with aluminum alloy wheels, front and rear gas shocks and 4 wheel disc brakes. You won't find higher performance or more fun in such an affordable package.


Technical Specifications
Engine
Type:  Single cylinder, Air-cooled, 4-Stroke
 Driving Mode:   2WD
Ignition mode:  CDI
 Compression proportion:   8.9: 1
 Start mode:   Electric
 Fuel tank capacity:   10.5L
 Transmission mode:   Chain
 Power:   20.5 HP / 8,000rpm
 Max. torque  15 Lbs-Ft / 6,000rpm
 Min. ground clearance:   4.75 "
 Max. speed  85km/h
 Power source:   12V, 20Ah
 Transmission:   4 Speed manual clutch W Rev
 Cylinder size:  78 x 61.2mm
 Engine oil:  1.3 L
 Lubrication:   Pressure splash
 Displacement:  292 CC
 Parking trig:  Mechanical lock
 Gas cylinder number:  1

Chassis
 Front wheels:   21x 7-10
 Rear wheels:   20 x 10-9
 Break type (F/R):   Disc / Disc
 Front hanging:   Double arm-swing
 Rear hanging:   Integral

Dimensions
 Product dimensions :   73" x 47" x 45"
 Carton dimensions:  70" x 44" x 35"
 Wheelbase:  48"
 Height of seats:  34"
 Dry weight:   419 Lbs
 Load capacity:  340 Lbs
 Climbing degree:   20°
 Min. turning radius:   118"
 Max. number of riders:  1
 Colours Available  Blue, Red, Orange

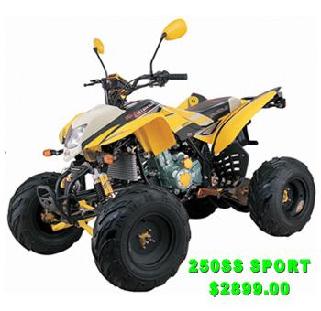

PM 250SS Sport

ALL NEW AND THE LOOKS TOO

Here is an awesome recreational sport quad with all the looks of a high-performance machine. This limited edition 250ss comes in a unique black, yellow and white combo. Big thrills in a small package doesn't come better then this.


Technical Specifications
Engine
Type:  Single cylinder, Liquid cooled, 4-Stroke
 Driving Mode:   4WD
Ignition mode:  CDI
 Compression proportion:   9.2: 1
 Start mode:   Electric
 Fuel tank capacity:   4L
 Transmission mode:   Chain
 Power:   18 HP / 7,500rpm
 Max. torque  12 Lbs-Ft / 6,000rpm
 Min. ground clearance:   4.2"
 Max. speed  80 Km/h
 Power source:   12V, 9Ah
 Transmission:   4 Speed, Manual clutch, W Rev
 Cylinder size:  63.5 x 62.2mm
 Engine oil:  0.9L
 Lubrication:   Press splash
 Displacement:  197ml
 Parking trig:  Mechanical lock
 Gas cylinder number:  1

Chassis
 Front wheels:   21x 7-10
 Rear wheels:   20 x 10-10
 Break type (F/R):   Disc / Disc
 Front hanging:   Double arm-swing
 Rear hanging:   Integral

Dimensions
 Product dimensions :   66" x 44" x 44"
 Carton dimensions:  58" x 33" x 34"
 Wheelbase:  46"
 Height of seats:  33"
 Dry weight:   368 Lbs
 Load capacity:  240 Lbs
 Climbing degree:   20°
 Min. turning radius:   107"
 Max. number of riders:  1
 Colours Available  Yellow, Black, Blue, Red

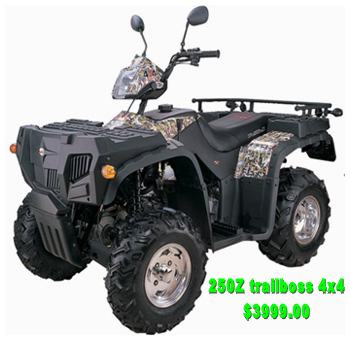

PM 250Z TRAILBOSS

WORK HARD PLAY HARD

The PM 250Z Trail Boss will haul you and your gear around, for hunting, trail riding or just straight up fun. This full size utility ATV can go to work for you. With its high torque 4 speed semi auto transmission, solid rear axel and 2X4 4X4 select this ATV is ready to get the job done.


Technical Specifications
Engine
Type:  Single Cylinder, Liquid-cooled, 4-Stroke
 Driving Mode:   4WD
Ignition mode:  CDI
 Compression proportion:   8.7: 1
 Start mode:   Electric / Manual
 Fuel tank capacity:   12 L
 Power:   15.5HP / 6,500rpm
 Max. torque  12.5 Lbs-Ft/ 5,500rpm
 Min. ground clearance:   6.5"
 Max. speed  75 km/h
 Power source:   12V, 14Ah
 Transmission:   4 Speed with reverse,
 Semi automatic 2X4 4X4
 Cylinder size:  71 x 58mm
 Engine oil:  1.6L
 gear oil:    Front tank :0.4L
 Rear tank :0.25L
 Lubrication:   press splash
 Displacement:  229.6 CC
 Parking trig:  Mechanical lock
 Gas cylinder number:  1

Chassis
 Front wheels:   22x 8-10
 Rear wheels:   22 x 11-10
 Break type (F/R):   Disc / Disc
 Front hanging:   Single arm-swing
 Rear hanging:   Integral
Dimensions
 Product dimensions :   75" x 45" x 48"
 Carton dimensions:  85" x 46" x 35"
 Wheelbase:  47"
 Height of seats:  35"
 Dry weight:   595 Lbs
 Load capacity:  375 Lbs
 Climbing degree:   20°
 Min. turning radius:   114"
 Max. number of riders:  1
 Colours Available Red, Blue, Green, Camoflage

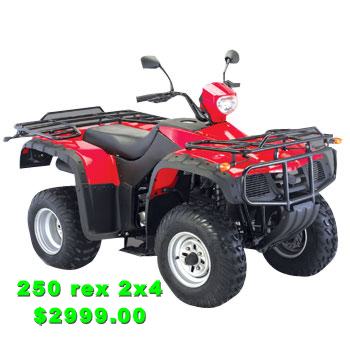

PM 250 REX SEMI-AUTO 2X4

Looking for that 250-class ATV that really knows it way around the trails? Then check out the 250 REX. Packing a resilient electric starting four-stroke engine, four-speed semi-auto transmission and steel cargo racks, Powemax 250 Rex is synonymous with four wheel value. Whether it's tasked with play or work, you can rest assured the tough and economical 250 Rex will excel at the job. .


Technical Specifications
Engine
Type:  single cylinder, air-cooling, 4-stroke
Ignition mode:  CDI
 Compression proportion:   8.8:1
 Start mode:   electric
 Fuel tank capacity:   2.75L
 Transmission mode:   chain
 Power:   2.2kW/7,500rpm
 Max. torque  3.0Nm/6,000rpm
 Min. ground clearance:   95mm
 Max. speed  ≥30km/h
 Power source:   12V, 6.5Ah
 Transmission:  4 gears, automatic clutch
 Power source:   39 x 41.4mm
 Engine oil:  0.8L
 Lubrication:   press splash
 Displacement:  49.456mL

Chassis
 Front wheels:   14.5x7.0-6
 Rear wheels:  14.5x7.0-6
 Break type (F/R):   rear disc
 Front hanging:   integral
 Rear hanging:   integral

Dimensions
 Product dimensions :   1,080 x 670 x 770mm
 Carton dimensions:  1,120 x 670 x 670mm
 Wheelbase:  700mm
 Height of seats:  540mm
 Dry weight:   68kg
 Load capacity:  50kg
 Climbing degree:   ≥15°
 Min. turning radius:   1,600mm
 Max. number of riders:  1

 Color:  red/yellow/blue/green/camouflage

PM 150 SS

Just Fuel up and go! On the track or trails the Powermax Max 150 SS is a great machine.

The Max 150's powerful, fully automatic with reverse makes this ATV one of our most popular models.

Recommended for riders ages 14 and up.


Technical Specifications
Engine
Type: Single-cylinder, Air-cooled, 4-stroke
Ignition mode:  CDI
 Compression proportion:  10:01
 Start mode:  Electric/ Kick
 Fuel tank capacity:  6.6L
 Transmission mode:  Chain
 Power:  6.2kW / 7,200rpm
 Max. torque 9.8N.m /4,800rpm
 Min. ground clearance:  120mm
 Max. speed ≥65km/h
 Power source:  12V, 9Ah
 Transmission: Full Auto, CVT W Reverse
 Cylinder size: 57.4 x 57.8mm
 Engine oil: 0.93L
 gear oil:   0.11L
 Lubrication:   press splash
 Displacement: 149 CC
 Parking trig:  Mechanical lock
 Gas cylinder number:  1

Chassis
 Front wheels:  19×7-8
 Rear wheels:  18×9.50-8
 Break type (F/R):  Disc / Disc
 Front hanging:  Double arm-swing
 Rear hanging:  Integral

Dimensions
 Product dimensions :  1,710 x1,000 x 1,100mm
 Carton dimensions: 1,490 x 840 x 830mm
 Wheelbase: 1,080mm
 Height of seats: 760mm
 Dry weight:  153kg
 Load capacity: 105kg
 Climbing degree:  ≥20°
 Min. turning radius:  2400mm
 Max. number of riders:  1
 Colours Available  Red, Black, Blue, Yellow, Green

PM 50 MINI

The PowerMax MINI 50 ATV is the perfect starter ATV to gain confidence in young riders. Equipped with a throttle governor and fully automatic transmission make this ATV the safest around.

Every child will remember its first motor sport memory; don't let your kids miss theirs. The PowerMax MINI 50 combines looks performance and quality for hundreds less!

Recommended for ages 5 and up.


Technical Specifications
Engine
Type:  single cylinder, air-cooling, 4-stroke
Ignition mode:  CDI
 Compression proportion:   8.8:1
 Start mode:   electric
 Fuel tank capacity:   2.75L
 Transmission mode:   chain
 Power:   2.2kW/7,500rpm
 Max. torque  3.0Nm/6,000rpm
 Min. ground clearance:   95mm
 Max. speed  ≥30km/h
 Power source:   12V, 6.5Ah
 Transmission:  4 gears, automatic clutch
 Power source:   39 x 41.4mm
 Engine oil:  0.8L
 Lubrication:   press splash
 Displacement:  49.456mL

Chassis
 Front wheels:   14.5x7.0-6
 Rear wheels:  14.5x7.0-6
 Break type (F/R):   rear disc
 Front hanging:   integral
 Rear hanging:   integral

Dimensions
 Product dimensions :   1,080 x 670 x 770mm
 Carton dimensions:  1,120 x 670 x 670mm
 Wheelbase:  700mm
 Height of seats:  540mm
 Dry weight:   68kg
 Load capacity:  50kg
 Climbing degree:   ≥15°
 Min. turning radius:   1,600mm
 Max. number of riders:  1

Other
 Conveyance:   Qty/20’ GP: 51 units
 Qty/40’ GP: 105 units
 Qty/40’ HQ: 138 units
 color:  red/yellow/blue/green/camouflage

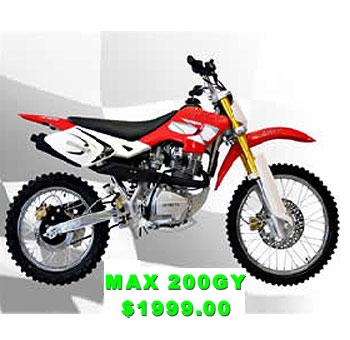

Max 200GY

The Powermax 200GY is designed for off-road adventure. This bike features a smooth running 197cc 4 stroke engine. Power is transmitted through a slick 5 speed manual transmission. Whether your riding the trails, having fun with the kids, or simply enjoying the outdoors with friends, your Powermax 200GY will give you years of trouble free enjoyment! Let the fun begin...

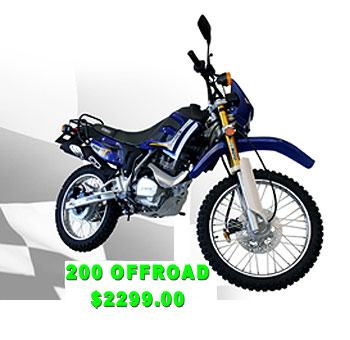

MAX 200 OFFROAD

Predictable power and reliability makes the Powermax 200 Enduro a great bike for beginner and intermediate riders.
Contact your local dealer for a test drive today!


Technical Specifications
Engine
Engine Type: 4-Strokes, Air Cooled, 5-speed
Cylinder Arrangement: Single Cylinder
Transmission System: Chain Drive
Bore x Stroke (mm): 61.0x 49.5
Piston Displacement (cc): 197.50
Compression Ratio: 9.8:1
Maximum Power (kw/r/min): 11.0/8500
Maximum Torque (N.m./rpm): 13.20/700
Starter System: Kick/Electric
Lubrication: Kress & splash
Transmission: 5-speed (international Gear)

Dimensions
 Overall LxWxH (in): 88x35x52
 Wheel Base (in): 57
 Seat Height (in): 34.5
 Colours Available Black & White

Please email any questions to darrel at
darrel@poplarridgelodge.com
